R410A Refrigerant

Product Overview

R410A (near-azeotropic mixture of 50% R32 and 50% R125) is the leading global eco-friendly refrigerant gas used to replace R22. As a core product for FRIOZEN, our R410A meets the highest purity standards (≥99.9%), ensuring your gas refrigerator or AC system runs with maximum stability and longevity.

Technical Specifications (Index)

Item Standard Index (Q/JHGS 207-2015)
Effective Purity (R125/R32) % ≥ 99.8
R32 Content (w%) 48.5 ~ 50.5
R125 Content (w%) 49.5 ~ 51.5
Moisture (w%) ≤ 0.0010
Acidity (as HCl) (w%) ≤ 0.0001
Chlorides (Cl-) Test Pass / Qualified
Volume of Non-condensable Gases (25°C, v/v) % ≤ 1.5
Evaporated Residue (w%) ≤ 0.01

Chemical & Physical Properties

  • Molecular Formula: CH₂F₂/CF₃CHF₂
  • Molecular Weight: 72.585
  • Boiling Point: -51.6°C
  • Critical Temperature: 70.46°C
  • Critical Pressure: 4.814 MPa
  • ODP Value: 0 (Ozone Friendly)

Versatile Packaging Options

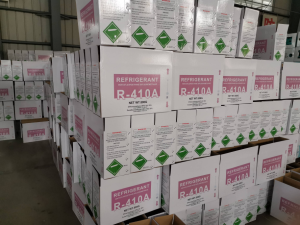

Bulk inventory of 800g R-410A refrigerant gas cylinders in a warehouse for wholesale distribution.

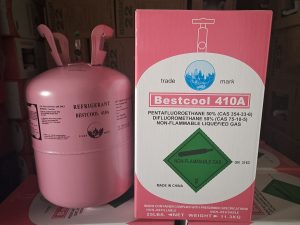

Disposable Cylinder

22lb (10kg) / 11.3kg (30lb)
Perfect for refrigerator leaking gas repair.

Refillable Cylinder

12.3L, 50L, 926L (Ton Tank)
Ideal for commercial HVAC installations.

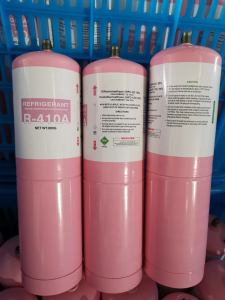

Three portable 800g R410A refrigerant gas canisters with detailed safety and usage instructions for HVAC maintenance.

Bulk Transport

ISO-TANKOptimized for factory-scale production.

Installation & Handling Guide



Important Notice: R410A systems operate at 1.6x higher pressure than R22. Correct handling of r410 a refrigerant gas is crucial:
Liquid Charging: Must be charged in liquid state (invert the cylinder).
Vacuuming: Mandatory to remove moisture/non-condensables.
Lubricant: Only use POE (Polyolester) Oil.

Performance Comparison

Feature R22 (Legacy) R410A (Standard) R32 (New)
ODP (Ozone) > 0 0 0
GWP 1810 2000 675
Efficiency Standard High Very High
Safety Class A1 A1 (Non-flammable) A2L

Frequently Asked Questions

Q: Can I use R410A in a system designed for R22?
A: No. R410A requires thicker-walled tubing and specific POE oil due to higher operating pressures.

Q: Why must R410A be charged in the liquid phase?
A: R410A is a blend of R32 and R125. If charged as a gas, the components will evaporate at different rates, leading to an incorrect chemical balance in the system and poor cooling performance.

Q: Can I “top off” an R410A system if there is a minor leak?
A: Technically yes, but it is not recommended. As a near-azeotropic blend, a slow leak can cause a slight shift in the component ratio over time. For optimal efficiency, it is best to recover the remaining gas, re-vacuum, and recharge by weight.

Q: What are the safety requirements for storing R410A cylinders?
A: Cylinders should be stored in a cool, well-ventilated warehouse away from fire and heat sources, with temperatures not exceeding 50°C. Avoid direct sunlight and ensure valve protection caps are securely in place.

Q: What are the transportation restrictions for R410A?
A: It requires professional DG containers for shipping, along with proper MSDS documentation and maritime safety certifications.
